Pipeline Anti-Corrosive Wrapping Tape
OVERVIEW
RANSPIPE-CBT 2MM is an Anti-Corrosive tape based on Coal Tar/ Bitumen and specifically designed to comply with the requirements of IS: 10221-1982. It incorporates a centre core of 45 gsm/sqm of Fibre Glass Tissue and HMHDPE film of 20 micron which lends mechanical strength, dimensional stability to the product. These centre cores are laminated with 3 layers of coal tar or bitumen mix. The final product has a top and bottom layer of thermo fusible HMHDPE Film. All the seven layers are calendared together to create this revolutionary 2mm thick tape. The material conforms to IS: 15337-2003 and AWWA: C203-2008.
PROPERTIES
- Excellent resistance to positive water & vapor pressure.
- Good heat resistance.
- Moisture Resistance.
- Good dimensional stability under tension.
- High puncture and fatigue resistance.
- High tensile and tear strengths.
- Corrosion Prevention.
INSTRUCTIONS FOR USE
The application temperature should be between 5°C to 45°C. Application procedures may vary slightly depending upon site conditions. The general recommended guidelines for the application of the waterproofing system are as follows:
SURFACE PREPARATION
The surface shall be cleaned thoroughly of all contaminants like dust, traces of curing compound, oil and grease. All surface imperfections and protrusions shall be removed and repaired.
PRIMING
Apply Solvent based RANSBITU-PRIMER @ 0.3-0.4L /Sqmt as per ASTM D 41 & IS: 3384-1986 and BS 4147-1980 to a clean smooth and dry surface by brush, roller or spray. Allow the primer to dry prior to the application of the membrane. As the viscosity of the primer is low, it easily creates adhesion between the membrane and the pipe surface. In addition to that the primer also acts as a binder for the dust which gets accumulated on the pipe surface even after cleaning.
PRECAUTION:
Wash all the tools and tackles with industrial solvent immediately after the application is completed.
HEALTH & SAFETY
Avoid prolonged contact with eyes and skin. For detailed information refer to relevant material safety data sheet.
ALIGNMENT & TORCHING
After RANSBITU-PRIMER, next step is followed; RANSPIPE-CBT 2MM Pipe Wrap Coating is then wrapped around the pipe in spiral fashion and bonded to pipe by thermo fusion process using LPG Torch. An overlap of 10mm is to be allowed. The overlaps are to be sealed by thermo fusion process.
- A second coat of primer is applied over the first layer of RANSPIPE-CBT2MM and allowed to dry till it becomes tacky.
- RANSPIPE-CBT 2MM second layer is spirally wound over the first layer in spiral fashion and the overlaps are thermo fused.
- An area of 250 mm at the end of the Pipes is to be left uncoated to permit installation and welding. This area is to be coated after welding.
- CAUTION
- Do not over torch the membrane as this will expose the reinforcement and cause damage to it.
- SEALING
- Heat both the overlaps and use round tipped trowel to seal the overlap. Adequate heat is confirmed when a uniform flow of melted bitumen compound flows evenly in a bead that oozes from the applied membrane’s edges. Excess compound should be smoothened and pressed into the seam using a heated trowel. Any un-bonded areas must be lifted and re-torched. Do not attempt to reseal by torching the top surface of the membrane. Up stand.
Flashing details are accomplished using cut pieces of RANSPIPE-CBT 2MM in combination with appropriate prefabricated flashing components. The same side lap and end lap rules apply to flashing details as to field membrane.All angles and abutments should be sealed with extra care to ensure full bonding.All brushes and tools should be cleaned by water immediately after use.
PACKGING & STORAGE
RANSPIPE-CBTis supplied in (10.00 Mtr L x 1.00Mtr W) as per given details:-
THICKNESS:-
2MM – (1Mx10M), Weight – 2.5 Kg-2.8 Kg
3MM – (1Mx1M), Weight – 3.75 Kg-4.0 Kg
4MM – (1Mx10M), Weight – 5.0 Kg-5.2 Kg
Store Rolls in a clean dry area protected from direct sunlight and extreme heat and cold. Unopened Rolls can be stored for 12 months.
TECHNICAL DATA
Product | 2mm Anti-Corrosive Pipe Wrapping Tape | |||||||||||||||||||
RAW COAL TAR PITCH
CharacterizationValues Standard Softening point 0˚C 65 121 ASTM D36 Specific gravity 1.30z0.05 ASTM D7l Ash content, % 0.5 Max. ASTM D24l5 Physical state Solid at ambient temperature FILLER Characteristics Requirement Test Method Fineness: % Shall pass through w/w, minimum mesh size of 75 microns ASTM D1366 Loss on ignition at 800° C, w/w max. 10 ASTM D1208 |
PHYSICAL PROPERTIES OF COAL TAR TAPE
Property Requirement Test method Min. Max. Service temperature ( 0˚C) – 60 – Tape thickness m1T1 2.0 2.5 AWWA C-203 Weight average (kg/sq.m/mm) 1.25 – ASTM Dl46 Breaking strength in longitudinal 0.7 – AWWA C-203 direction kN/m Adhesion AWWA C-203. Insoluble content % by wt. in Petrol 93 minimum (procedure given in ANNEXURE-I) |
|||||||||||||||||||
FABRIC
|
PHYSICAL PROPERTIES OF COAL TAR COMPONENT IN THE FINISH TAPE
Property Requirement Test method Min. Max. Softening point ( 0C) 65 12 l ASTM D36 Penetration at 250C/ 1 9 ASTM D5/BS-4164 100g/ 10 ‘ mm/5sec Filler % 20 35 ASTM D 2415 or AWWA C-203 |
|||||||||||||||||||
TECHNICAL CHARACTERISTICES FOR PIPE WRAP PRIMER
|

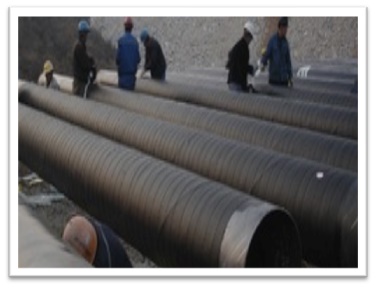

PICTURES/IMAGES AT GLANCE
RANS ENGINEERING & CHEMICALS offers a comprehensive range of products and services for most concrete and finishing needs. Please contact the RANS Technical Service Department or your local RANS agent for further information, samples, demonstrations and instructor services. The information given in this leaflet is based upon laboratory research, as well as extensive field work and application. All products are sold subject to standard conditions of sale which are available on request. This information is based on RANS present state of knowledge and is intended to provide general information on RANS’s products and their methods of use. The prospective user is recommended to determine the suitability of RANS’s suggestions and products before adopting them on a commercial scale.
